Divin Marquis


The flagship product Divin Marquis sets the ultimate benchmark for small high efficiency loudspeakers.

The core of our small size Divin Marquis is represented by a specifically developed 8 inch midrange driver, where we implemented a lot of our patented Göbel® bending wave technology. Our patented Göbel® bending wave technology is based on the principals of sound creation through musical instruments and is the result of over 15 years of development that we invested in order to achieve the most natural sound possible.

For the impeccable high tone reproduction in the Divin Marquis, we are using the best AMT tweeter technology available, which is furthermore excellently optimized and adjusted through a massive wave guide, milled out of full aluminum. The specific curve progression of this wave guide finally assures flawless aggregation of all drivers to a homogeneous and natural sound dispersion, which you have never experienced before.

In order to also achieve an absolute homogeneous sound dispersion and stimulation of the room modes within the low frequency range the Divin Marquis is additionally equipped with one custom built Göbel® 12 inch long throw bass driver. This bass driver is specifically located in the constrained-layer damping front baffle, creating an absolute smooth transition of the 8 inch midrange driver to the low frequencies of this custom built Göbel® long throw bass driver.

The purely functional design with the perfectly defined form and the use of specific constrained-layer damping and multilayered tropical room proof materials, combined with the ideal ratio of stiffness and dampening behaviors, eliminate any diffractions, resonances and energy saving effects.

Reviewer Statements


I have not previously experienced such a coherent, completely seamless coverage of the entire frequency range!

Dirk Sommer “Hifistatement”

"The saxophone on a jazz recording was larger than life!"

Jim Clements "hometheaterhifi.com"

"The sound quality was staggering."

Martin Mertens "fairaudio"

"Digital sounded as resolved and easygoing as great analog, the highs remaining pure, the lows resolving to the very depths of the recording -- impressive stuff …"

Marc Mickelson "The Audio Beat"

"I know of no other speaker that plays music with such homogeneity."

Dirk Sommer "Hifistatement"

"For the first time in show memory I just sat and listened for fun, to cut after cut."

Jonathan Valin "the absolute sound"

"The sound was captivating. The speed and dynamics of this system were mesmerizing."

Steve Marsh "6moons"

"The Lacorde Statement cables are the best cables I have ever heard with my system."

Dirk Sommer "Hifistatement"

"I was so impressed I went back on Sunday to confirm what I heard, and yes, these just might be the most realistic speakers on the planet!"

"Audiokarma"

The Göbel Epoque with its unique bending wave driver covering a frequency range from 180 Hz to 31.000 Hz sounded detailed and extraordinary coherent."

Peter Breuninger "AVshowrooms"

"Another specialty of the Epoque Fine is its thrilling, yet unspectacular fine dynamics."

Dirk Sommer "Hifistatement"

"Yet it's a system which sounded remarkably open, natural and even dynamic with a string quartet piece."

Jason Kennedy "dagogo"

"I returned to this setup over and over again surprised each time by the overall ease and coherency of the Göbel Epoque."

Clement Perry "StereoTimes"

"Simply unbelievable that so much resolution can be accompanied by such strong tonality and such a rich foundation!"

Dirk Sommer "Hifistatement"

"The German made Göbel Epoque Aeon Reference Bending Wave loudspeaker proved to be a show stopper."

Clement Perry "StereoTimes"

"The sound image was incredibly fast, with high resolution and to a certain extent simply effortless so that the awesome amount of technology immediately just faded into the background and let the music take over."

Martin Mertens "fairaudio"

"With the Lacorde Statement, you do not have to choose between a huge imaginary space or melodic, refined, yet rich bass response. Here, you absolutely get both!"

Dirk Sommer "Hifistatement"

"Simply the finest sound I have heard by a fair margin in these cable types.“

Dan Worth „hifipig“

"When the Epoque Fine is playing, the enormous homogeneity and the degree of authenticity with which sounds, voices and instruments are displayed is breathtaking.“

Ruud Jonker „Hifi.nl“

"Yes, that is what a true high end system sounds like, visceral and transparent at the same time“

Panagiotis Karavitis „parttimeaudiophile.com“

"The Epoque displayed gorgeous sound with resolution, transparency, a natural timbre and a three-dimensional soundstage with powerful dynamics.“

Key Kim „Stereotimes.com“

"Up to this point, any of the Lacorde Statement cables have definitely left my previous favorites behind by a wide margin.“

Dirk Sommer „hifistatement.net“

"Simply the finest sound I have heard by a fair margin in these cable types.“

Dan Worth „hifipig“

"When the Epoque Fine is playing, the enormous homogeneity and the degree of authenticity with which sounds, voices and instruments are displayed is breathtaking.“

Ruud Jonker „Hifi.nl“

"Yes, that is what a true high end system sounds like, visceral and transparent at the same time“

Panagiotis Karavitis „parttimeaudiophile.com“

"The Epoque displayed gorgeous sound with resolution, transparency, a natural timbre and a three-dimensional soundstage with powerful dynamics.“

Key Kim „Stereotimes.com“

"Up to this point, any of the Lacorde Statement cables have definitely left my previous favorites behind by a wide margin.“

Dirk Sommer „hifistatement.net“

Featured Technologies

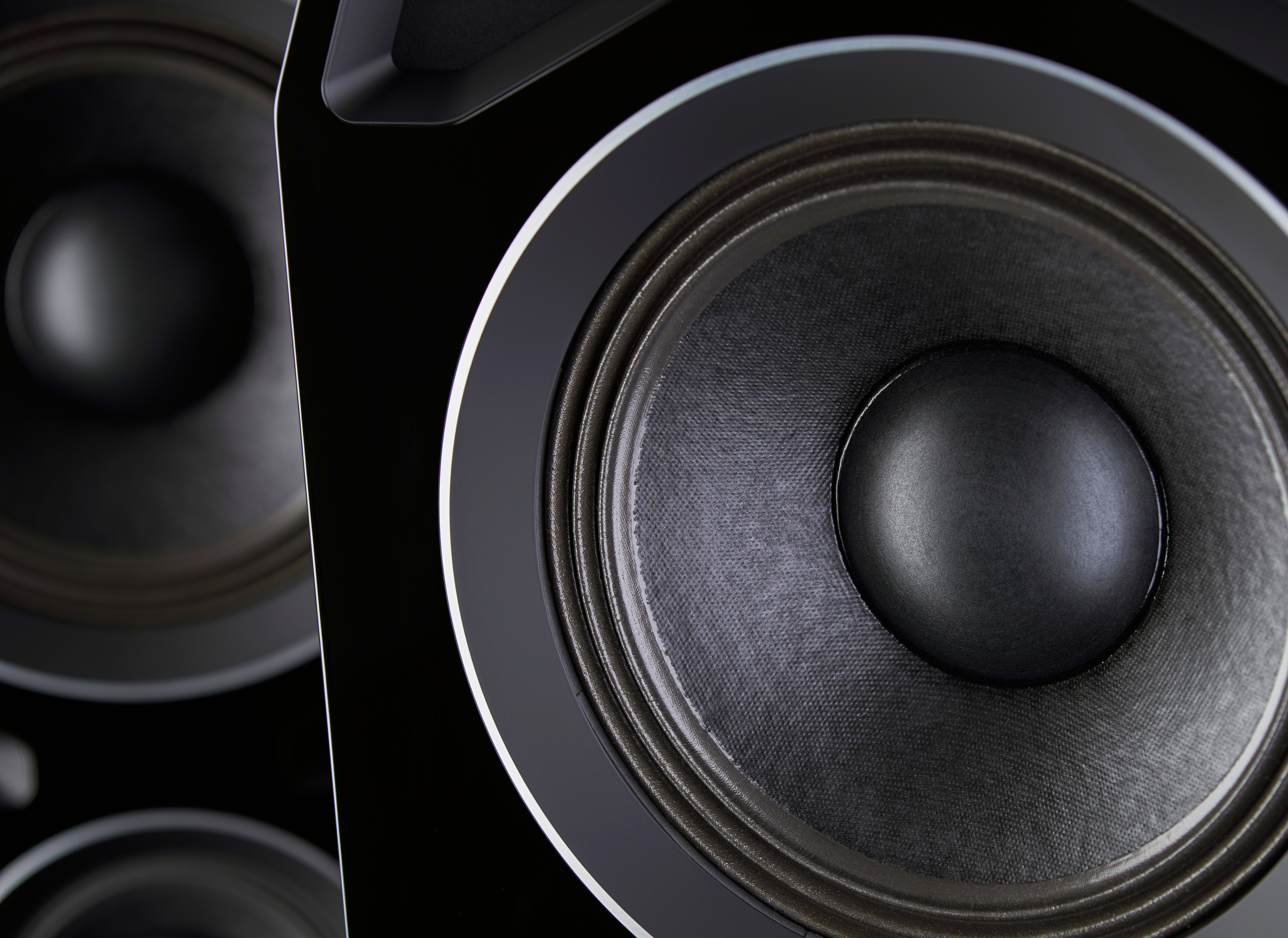

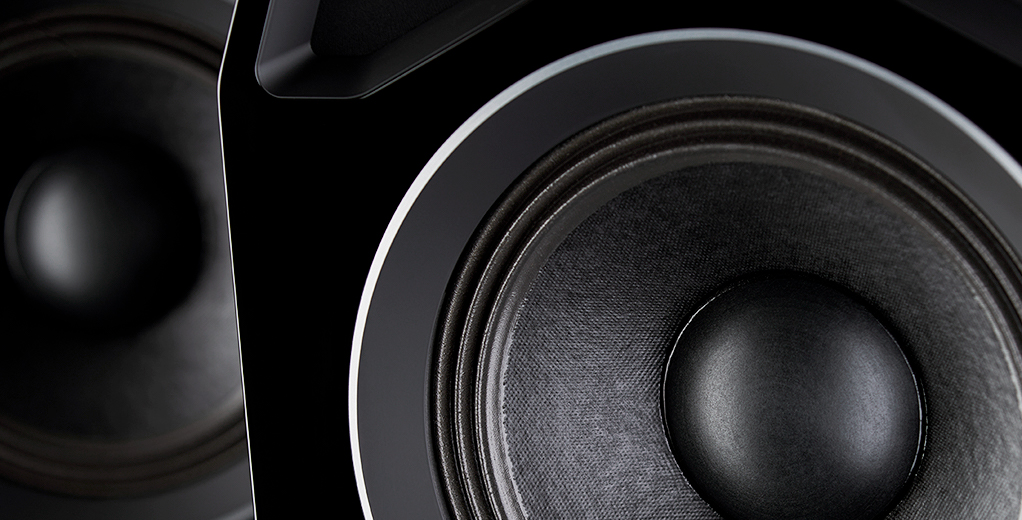

Bending wave technology based 8 inch midrange Drivers

The world wide unique Göbel® 8 inch carbon / paper midrange driver to which we applied the unparalleled Göbel® bending wave technology, reproduces the sound in an unheard naturalness and coherence. Through our bending wave technology we were able to accurately control all resonances that occur in all parts of normal drivers: Membrane, Spider, Surround, Voice Coil, Basket, etc. Additionally, we paid special attention to the driver's heat management, as well as it's distortion behavior and finally a lossless mechanical and electrical performance. As a result the sound gets utmostly coherent and natural, with a perfect impulse and transient response. Every fine detail and piece of room information is precisely reproduced regardless of the listening volumes.

Bending wave technology based 8 inch midrange Drivers

Lossless Bass Drivers

In order to get a perfectly smooth transition from the Göbel® bending wave technology based 8 inch midrange drivers to the low frequency drivers we had to develop incredibly fast and absolutely linear bass drivers for our Divin Majestic. The motor systems are optimized to the maximum linearization of the magnet field in both directions of the extremely high excursion area, resulting in the lowest and smoothest possible harmonic distortion spectrum. Furthermore, all materials we are using here are of unparalleled quality, making it possible to reach the minimum possible loss factors, the fastest impulse behavior and the best heat management. Only to sum a few: very big glas fiber voice coils, extremely lossless spiders and gaskets, extensive ventilation, extremely light weight glass fiber / paper membranes, ... Hereby the sound gets maximally natural and controlled, with a superb impulse and transient response regardless of the listening volumes.

Lossless Bass Drivers

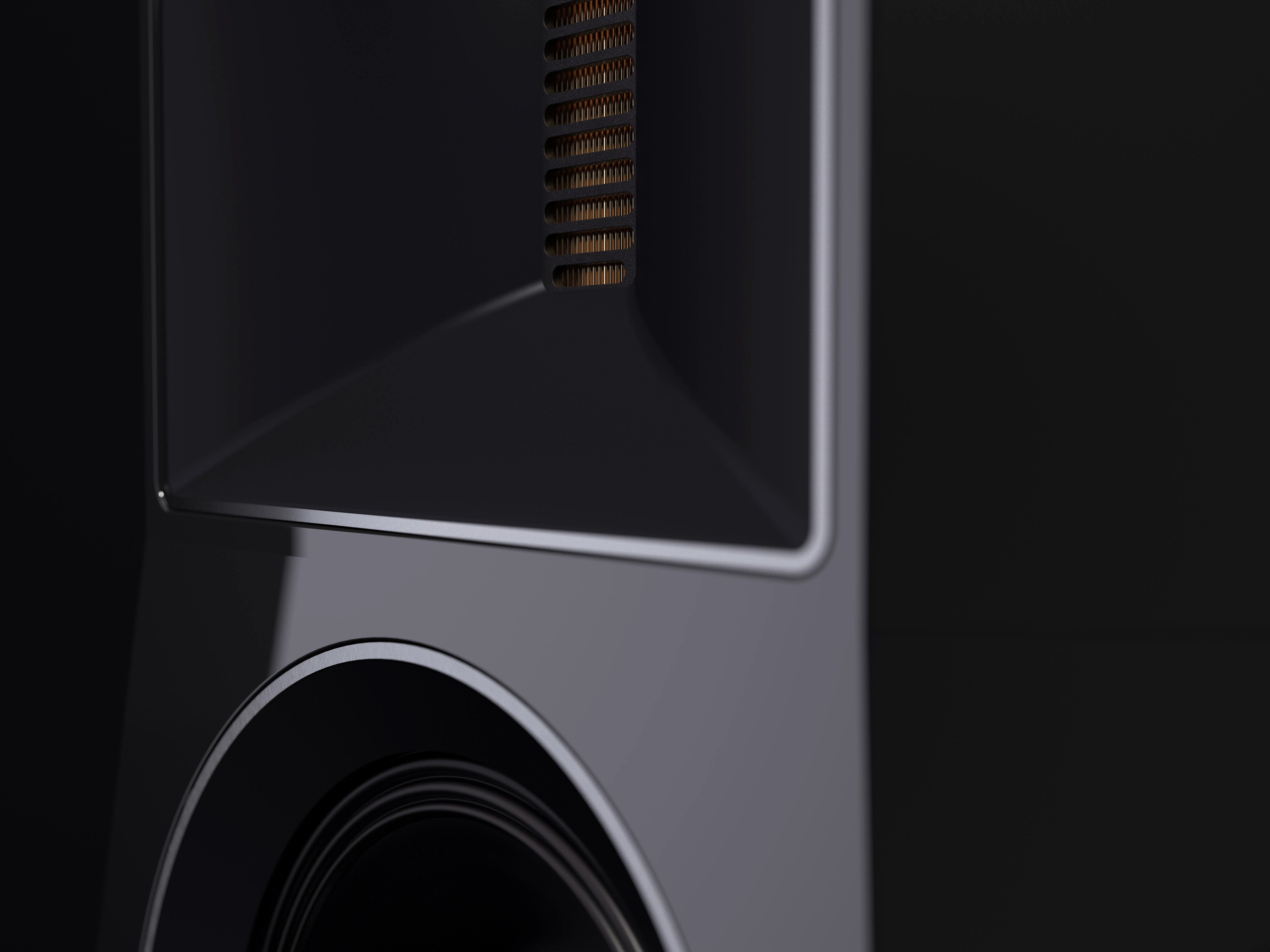

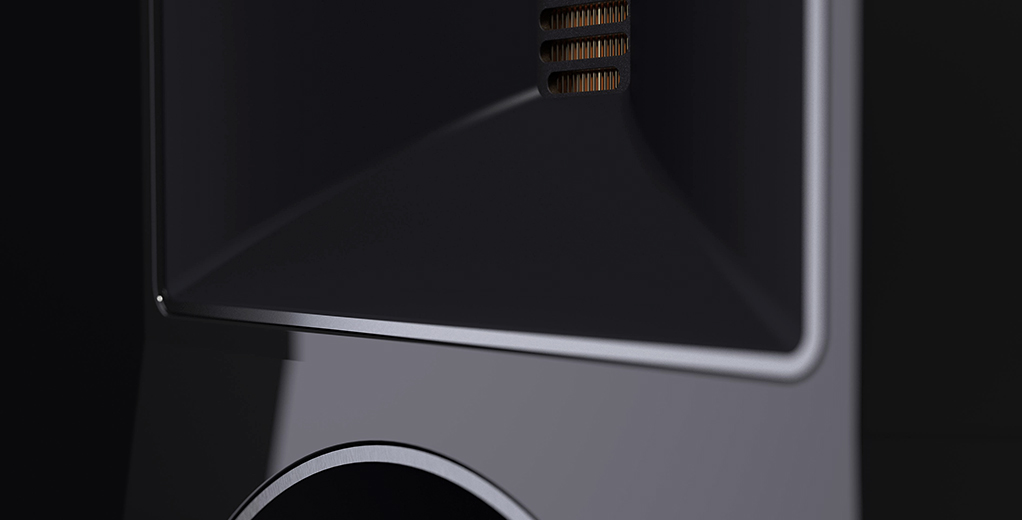

Wave Guide Loaded AMT Tweeter Technology

In order to ensure the best possible impulse and transient response with the smallest mass inertia losses, such as impulse deadening, we significantly improved an already very special AMT tweeter. For the ideal coupling of this special AMT tweeter and to ensure an absolute coherent overall dispersion, we also developed a specific wave guide with a unique Tractrix adapted curve progression. This massive wave guide is milled out of full aluminum in order to provide a stable and resonance optimized foundation. You will experience all our efforts in a perfect synergy of the sublime AMT tweeter with the bending wave technology based 8 inch midrange drivers and the unbelievably fast and controlled 18 inch bass drivers. The sound is maximally coherent and emotional with a flawless phase and time behavior.

Wave Guide Loaded AMT Tweeter Technology

Symmetrical Loaded Bassreflex Alignment

For the bass enclosure of our Divin Majestic we developed a special symmetrical bass reflex enclosure alignment in order to achieve an excellent distortion behavior. Through this symmetrical arrangement, the bass chassis are "seeing" a symmetrical load in the back so the membranes don't wobble even if the excursions are getting bigger. This unsymmetrical wobbling of the membranes is a big reason for rising distortions, as the voice coil hereby is also forced to wobble in the magnet field. We are completely minimizing this effect because of our symmetrical bass reflex alignment. On top of that, we developed special internal Helmholz resonators for the bass enclosures. These internal Helmholz resonators are coupled to the internal volume by ceramic foam layers. As a result we are able to fully cancel the internal standing waves inside the bass enclosures and therefore minimizing the usage of damping materials. Through this we are avoiding energy saving effects and bringing the time, phase and frequency behavior to perfection.

Symmetrical Loaded Bassreflex Alignment

Ultra Rigid Sandwich Enclosure

The enclosure of the Divin Majestic is an absolute non-compromise design, where all our knowledge about material resonances was applied. Based on our bending wave technology, we certainly know exactly how to manage surface waves on enclosure materials so they don't even start to arise. For the Divin Majestic we are using a combination of our proprietary constrain layer dampening with multilayered tropical room proof materials and specific aluminum alloys, together with kinetic mass dampening methods on special locations, in order to prevent any resonances in the working areas of each driver. Through this up to 110 mm thick ultra rigid material combination we are also avoiding any energy saving effects. This results in an unbelievably uncolored sound reproduction with tremendous attack and speed in front of an absolute silent background. Finally, the bass, midrange and tweeter chassis are mounted in a specific symmetrical array, with specific angulars, offsets, baffle dimensions and chamfers. Hereby we are able to optimize the time and phase behavior as well as the frequency and overall dispersion. Amongst others, through this the music can be reproduced in its real size and scale.

Ultra Rigid Sandwich Enclosure

Totally Isolated Crossover

For the meticulously selected crossover network parts, we are only using the best parts available. These are mounted totally isolated in a resonance optimized, totally sealed chamber in the back of the loudspeaker. Additionally, each crossover way (tweeter, midrange, bass) is housed in a separate box, sealed with different epoxy resins and mounted over silent blocks to the enclosure. Through this, we are avoiding any crosstalk, electrical and magnetic coupling, air pressure inducted distortions, as well as any mechanical interferences between them and the enclosure. Last but not least each network component is hand wired point-to-point in order to avoid parasitic effects of pc-board type constructions. All of these efforts lead to an unbelievably natural sound reproduction which is hard to imagine if you have not heard it.

Totally Isolated Crossover

Technical Specifications


Principle

3-Way, high sensitivity, symmetrical bass reflex loudspeaker

Drivers

1 pcs. Göbel® High End proprietary long-throw Bass chassis (12 inch)
1 pcs. Göbel® High End proprietary midrange chassis (8 inch)
1 pcs. significantly improved AMT tweeter with massive aluminum wave guide

Housing

Acoustically optimized, constrained-layer damping,
tropical room proof, resin bounded composite board
with max. 75 mm thickness

Standard finishes

Real piano lacquer black,
aluminum parts in black ultra matt soft touch
with natural aluminum brushed silver colored high lights.
Any finish possible on customer request!

Impedance

nominal 4 Ohm
Impedance minimum in single wiring 3,4 Ohm at 95 Hz

Efficiency

92 dB / 1W / 1m

Crossover frequency

140 Hz / 1600 Hz

Frequency response

21 - 28.000 Hz (-3dB)

Dimensions

118 cm (H) x 41 cm (W) x 72 cm (D)

Packaging

1 professional flight cases for each loudspeaker

Weight

150 kg without packaging for each loudspeaker
180 Kg including flight case packaging for each loudspeaker

Standard Finishes

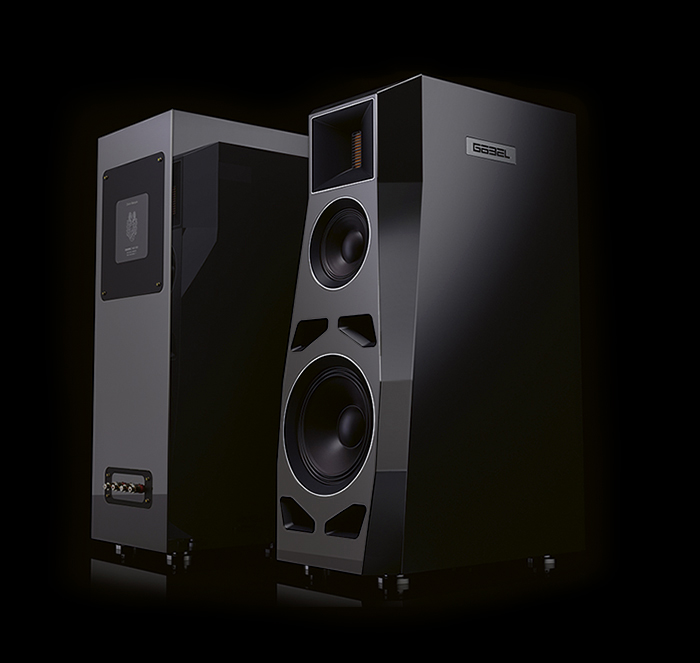

Divin Marquis
back view
front view

Real piano lacquer black.
Aluminum parts in black ultra matt soft touch.
With silver aluminum brushed high lights.

All color finishes are possible on extra charge
