Epoque Aeon Baforce


The flagship product Epoque Aeon Baforce sets the ultimate benchmark for subwoofers.

The Epoque Aeon Baforce subwoofer is the choice for the ultimate sub-bass reproduction. In order to achieve an absolute homogeneous sound dispersion and stimulation of the room modes within the sub-bass frequency range the subwoofer Epoque Aeon Baforce is furnished with 16 custom built Göbel® Aeon 9 inch long throw aluminum bass drivers which are arranged in a specific array.

These symmetrically arranged bass drivers are located on the left side and right side of the enclosure and are impulse compensated. Do to this particular impulse compensated array of the bass drivers and that each of this custom built bass drivers is mounted in its own sealed chamber, an ideal impulse behavior, best possible control and therefore the fastest possible bass response is guarantied.

The Epoque Aeon Baforce series can be ordered in an active version, as well as in a passive version, so the customers have the choice using their preferred amplification.

In the active version, each bass driver has it’s own 250 Watt amplifier, so 16 x 250 Watt generate full 4000 Watt. The massively oversized power supply can shortly deliver 4 times higher peak current as the amplifiers will need at maximum level. Always controlled by a micro controller to permanently have monitored secured conditions. Everything mounted in the loudspeaker foot, which is milled out of a full block of a specific aluminum alloy in order get the perfect control over EMI, crosstalk, heat dispersion and resonance patterns.

The crossover / controller of the Epoque Aeon Baforce is always excluded and is available from us as the unit called “Epoque Aeon Baforce Controller”. We deliberately outsourced the totally analog high end active crossover / controller in an external enclosure, so the small signals are not influenced by the massively current / voltage of the amp / power section, as well as from their mechanical resonances and hugely magnetic fields.

The purely functional design with well-defined shaping`s and the use of specific aluminum alloys together with our special high density, bulletproof, multilayered composite materials eliminate any diffractions, resonances and energy saving effects from the outset.

Reviewer Statements


I have not previously experienced such a coherent, completely seamless coverage of the entire frequency range!

Dirk Sommer “Hifistatement”

"The saxophone on a jazz recording was larger than life!"

Jim Clements "hometheaterhifi.com"

"The sound quality was staggering."

Martin Mertens "fairaudio"

"Digital sounded as resolved and easygoing as great analog, the highs remaining pure, the lows resolving to the very depths of the recording -- impressive stuff …"

Marc Mickelson "The Audio Beat"

"I know of no other speaker that plays music with such homogeneity."

Dirk Sommer "Hifistatement"

"For the first time in show memory I just sat and listened for fun, to cut after cut."

Jonathan Valin "the absolute sound"

"The sound was captivating. The speed and dynamics of this system were mesmerizing."

Steve Marsh "6moons"

"The Lacorde Statement cables are the best cables I have ever heard with my system."

Dirk Sommer "Hifistatement"

"I was so impressed I went back on Sunday to confirm what I heard, and yes, these just might be the most realistic speakers on the planet!"

"Audiokarma"

The Göbel Epoque with its unique bending wave driver covering a frequency range from 180 Hz to 31.000 Hz sounded detailed and extraordinary coherent."

Peter Breuninger "AVshowrooms"

"Another specialty of the Epoque Aeon Fine is its thrilling, yet unspectacular fine dynamics."

Dirk Sommer "Hifistatement"

"Yet it's a system which sounded remarkably open, natural and even dynamic with a string quartet piece."

Jason Kennedy "dagogo"

"I returned to this setup over and over again surprised each time by the overall ease and coherency of the Göbel Epoque."

Clement Perry "StereoTimes"

"Simply unbelievable that so much resolution can be accompanied by such strong tonality and such a rich foundation!"

Dirk Sommer "Hifistatement"

"The German made Göbel Epoque Aeon Reference Bending Wave loudspeaker proved to be a show stopper."

Clement Perry "StereoTimes"

"The sound image was incredibly fast, with high resolution and to a certain extent simply effortless so that the awesome amount of technology immediately just faded into the background and let the music take over."

Martin Mertens "fairaudio"

"With the Lacorde Statement, you do not have to choose between a huge imaginary space or melodic, refined, yet rich bass response. Here, you absolutely get both!"

Dirk Sommer "Hifistatement"

"Simply the finest sound I have heard by a fair margin in these cable types.“

Dan Worth „hifipig“

"When the Epoque Fine is playing, the enormous homogeneity and the degree of authenticity with which sounds, voices and instruments are displayed is breathtaking.“

Ruud Jonker „Hifi.nl“

"Yes, that is what a true high end system sounds like, visceral and transparent at the same time“

Panagiotis Karavitis „parttimeaudiophile.com“

"The Epoque displayed gorgeous sound with resolution, transparency, a natural timbre and a three-dimensional soundstage with powerful dynamics.“

Key Kim „Stereotimes.com“

"Up to this point, any of the Lacorde Statement cables have definitely left my previous favorites behind by a wide margin.“

Dirk Sommer „hifistatement.net“

Featured Technologies

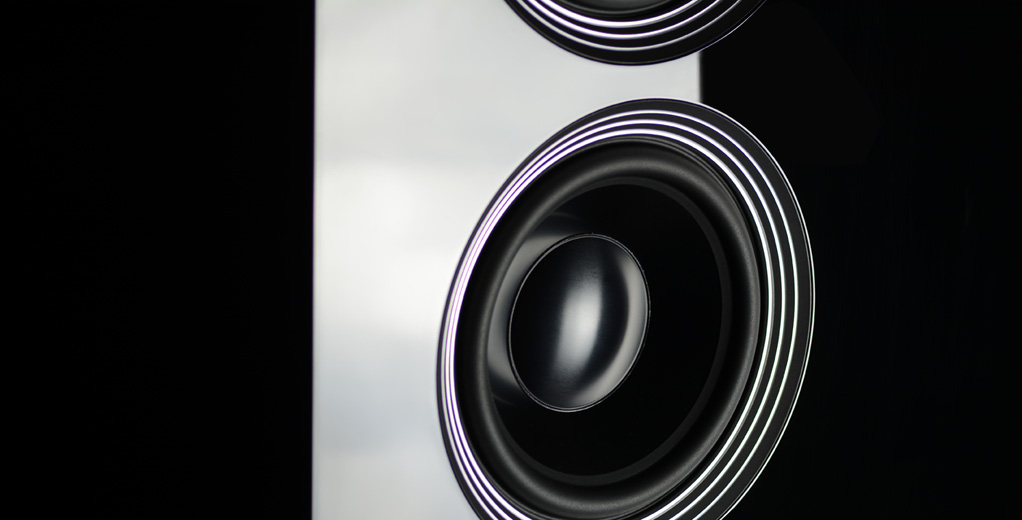

Lossless Bass Drivers

In order to get an ideal impulse behavior and therefore the fastest possible bass response, we had to develop incredibly fast and absolutely linear bass drivers for the Epoque Aeon Baforce. The motor system is optimized to the maximum linearisation of the magnet field in both directions of the extremely high excursion area in order to get the lowest and smoothest possible harmonic distorsion spectrum. Additionally all materials we use here are second to none in order to get the minimum possible loss factors and the fastest impulse behavior. Only to sum a few: Glasfiber voice coils, extremely lossless spiders and gaskets, extensive ventilation, extremely rigid aluminum membranes, ...

lossless bass drivers

Multiple Bass Array

In order to get an even more accurate and fast bass response we use a multiple array of bass drivers. These special bass drivers are mounted in a particular array on the left and the right side of the enclosure in order to activate the room modes completely uniformly. Additionally each of these custom built bass drivers are mounted in their own sealed chamber in order to get the best possible impulse behavior and therefore the fastest possible bass response with maximum control. In terms of maximum sound pressure level you have to move a lot of air when the frequency goes down. Therefore the surface area sum of all bass drivers in one Epoque Aeon Baforce is greater than 3,600 cm2! And all this with a linear excursion of more than 2 cm!

multiple bass array

Impulse Compensation

Additionally these ultra lossless bass drivers are mounted impulse compensated in the enclosure of the Epoque Aeon Baforce. Through this additional technology and based on the usage of our proprietary ultra rigid sandwich enclosure materials, the harmonic distorsions and material resonances are once again reduced to nearly one tenth part. You will experience this in an even higher resolution, effortlessness and even quicker transient response in the bass and sub-bass area.

impulse compensation

Ultra rigid Sandwich Enclosure

The enclosure of the Epoque Aeon Baforce is an absolute non-compromise design, where all our knowledge about material resonances where applied. Based on our bending wave technology, we certainly know exactly how to manage surface waves on enclosure materials so they doesn't even start to arise. For the Epoque Aeon Baforce we only use our proprietary multilayered composite material in combination with a special aluminum alloy in order to prevent any resonances in the working areas of each driver. Through this ultra rigid combination of materials we also avoid any energy saving effects. You will experience this in an unbelievable uncolorationed sound reproduction with tremendous attack and speed in front of an absolute silent background.

ultra rigid sandwich enclosure

Direct coupled bass drivers to the amplifiers

Each bass driver in the active version of our Epoque Aeon Baforce has it’s own 250 Watt/sin. amplifier and is directly coupled to it’s output. So in the active version of our Epoque Aeon Baforce subwoofer we are using 16 amplifiers, each can deliver 250 Watt/sin. = 4 KW/sin. in total! The power amplifiers are special adapted Class H types with a very low output impedance. Hereby we reach a stunning high damping factor and get the best possible control over each bass driver. Additionally we hereby also avoid influences through back EMI from the outset. This all results in a bass reproduction with the best possible impulse behavior and maximum control, which you have never experienced before.

direct coupled bass drivers to the amplifiers

Massively Oversized Power Supply

The massively oversized high end power supply can shortly deliver 4 times higher peak current as all the amplifiers will need at maximum level. Always controlled by a mirco controller to permanently have monitored secured conditions. Additionally In order to even lower the interferences, we designed the enclosure so the power supply has it’s own shielded chamber and doesn’t effect the analog section. Hereby every dynamic impulse will be reproduced with unbelivable velocity and precision. So every small dynamic detail of the music will be unveiled without compression.

Totally EMI and Resonance Proof Enclosure

The complete electronic is housed in a non-compromise enclosure which is milled out of a full block of a specific aluminum alloy. Hereby we get perfect control over many things. For example avoiding EMI, the ideal heat dispersion, the freedom from magnetic interfering fields, an ideal resonance behavior of the complete system, ... Additionally in order to even lower the interferences we designed the enclosure so every unit has it’s own shielded chamber in this enclosure. So for example the power supply and micro controller doesn’t effect the analog section.

massively oversized power supply

Technical Specifications


Principle

Closed chamber in a special array

Drivers

16 massive Göbel® Aeon 9 inch aluminum long-throw sub-bass drivers

Housing

Acoustical optimized bulletproof multilayered composite material

Standard finishes

subwoofer enclosure:
Real piano lacquer white with aluminum parts
lacquer anodized in natural silver semi gloss
Real piano lacquer black with aluminum parts
lacquer anodized in dark space grey semi gloss

Frequency response

15 Hz (low frequency CUT OFF) - 80 Hz (high frequency CUT OFF)

Dimensions

base plate: 52,5 cm width x 65,5 cm depth
total height: 216 cm

Passive Version

Impedance: 4 Ohm
Weight without packaging: 335 Kg
Weight including flight case packaging: 385 Kg

Active Version

Total output power: 16 x 250 Watt at 1% THD
= 4.000 Watt at 1% THD total
Weight without packaging: 355 Kg
Weight including flight case packaging: 405 Kg

Epoque Aeon Baforce

Standard Finishes Enclosure


epoque baforce white
front view
back view

Composite enclosure parts real piano lacquer white Aluminum parts lacquer anodized in natural semi gloss

epoque baforce black
front view
back view

Composite enclosure parts real piano lacquer black Aluminum parts lacquer anodized in dark space grey semi

All color finishes are possible on extra charge

Standard Finishes Foot (Active or Passive version)

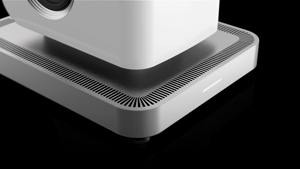

baforce bodenplatte white aktiv
Active version

Aluminum foot laquer anodized in natural silver semi Stainless steel top / bottom with heat dispersion slots

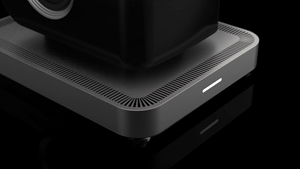

baforce bodenplatte black aktiv
Active version

Aluminum foot laquer anodized in space grey semi Stainless steel top / bottom with heat dispersion slots

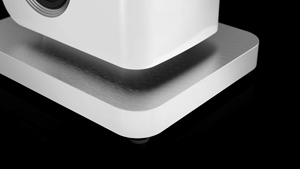

baforce bodenplatte white passiv
Passive version

Composite foot with real piano lacquer white Stainless steel top and bottom

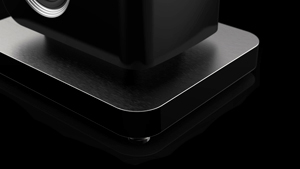

baforce bodenplatte black passiv
Passive version

Composite foot with real piano lacquer black Stainless steel top and bottom

All color finishes are possible on extra charge
